High-risk or Counterfeit Parts Report
Briocean has established two Quality Assurance (QA) centres, one in Shenzhen and the other in Hong Kong, covering an area of around 1,000 square meters each. With over 60 advanced professional testing equipment and more than 50 qualified inspection engineers, the centres follow a 3-tier international standard quality control (QC) process.
Tier 1 Inspection Intercepted Parts List
To provide you with a better understanding of how Tier 1 inspection works, we have also selected two labels (Infineon & Texas Instruments) from the intercepted list and included a breakdown of the differences identified by our inspection engineers.

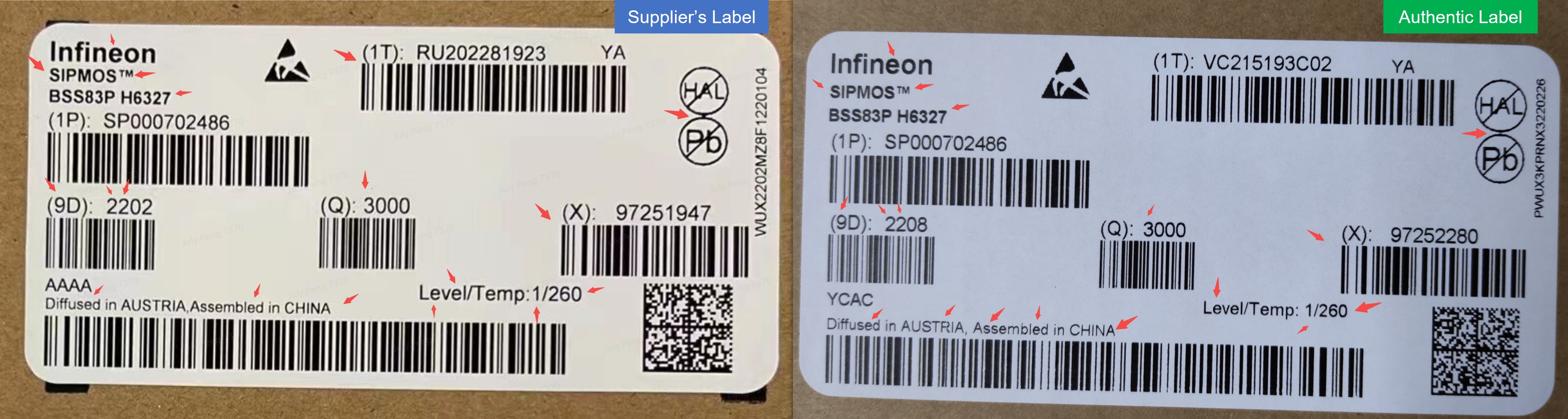

Left: Intercepted part; Right: Authentic label from database
Upon receiving Infineon’s BSS83PH6327 shipment label, we compared it with the authentic label in our database and spotted a few differences.
Logo, font, serial code, part code: It can be clearly seen from the picture that the logo font, serial font on the supplier’s label is bigger and different from the authentic label. The gap between the logo and serial number on the supplier’s label is also smaller as compared to the authentic label.
Layout: The spacing between the position information such as 1T, 1P, 9D and barcode is different.
Environmental protection label: The anti-static label of abnormal labels and lead-free label are different in the overall size as compared to the authentic label.
Hence, it was concluded that this label carries a high-risk of being a counterfeit.

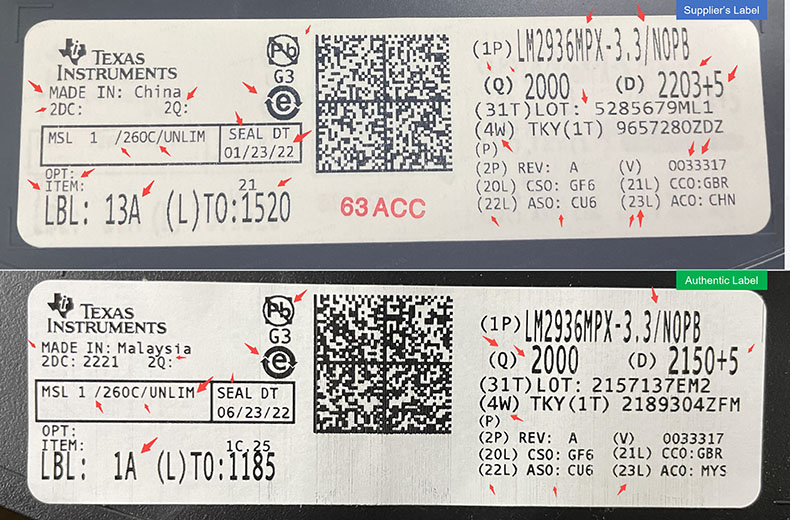

Top: Intercepted part, Bottom: Authentic label from database
The logo and environmental label font on the authentic labels are more regular and the location of the labels are different from the supplier’s label.
Part number quantity position: The font of the authentic label and quantity is relatively consistent, and the gap between the top and bottom lines is relatively narrow. On the other hand, the font, position of the quantity number and DC also varies greatly on the supplier’s label as compared to the authentic ones.
Hence, it was also concluded that this label carries a high-risk of being a counterfeit.

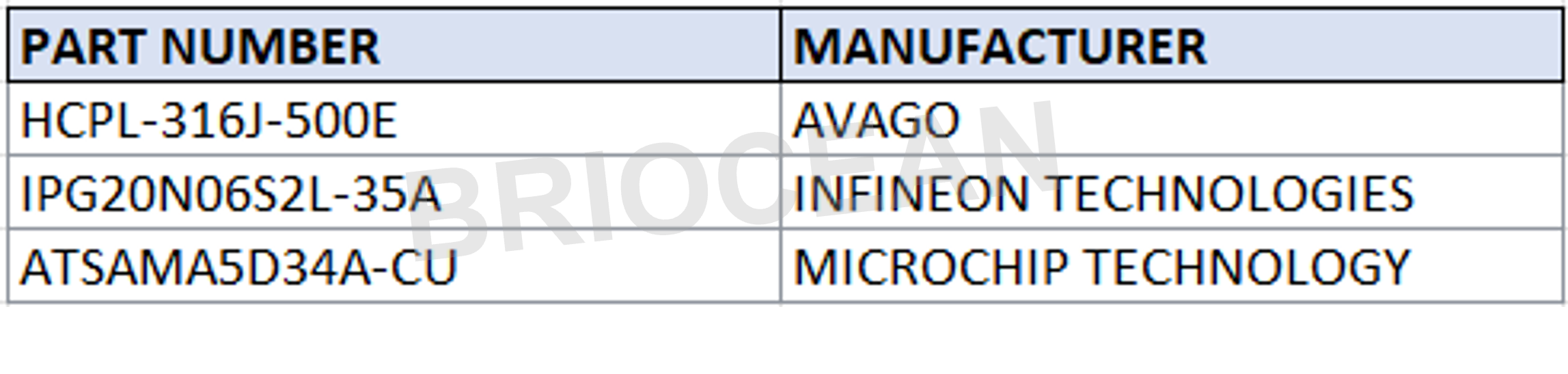

Tier 1 Interception Part List
Tier 2 Inspection Intercepted Parts List
(The table below is not the full version of the report, please reach out to firstname.lastname@example.org for full report)

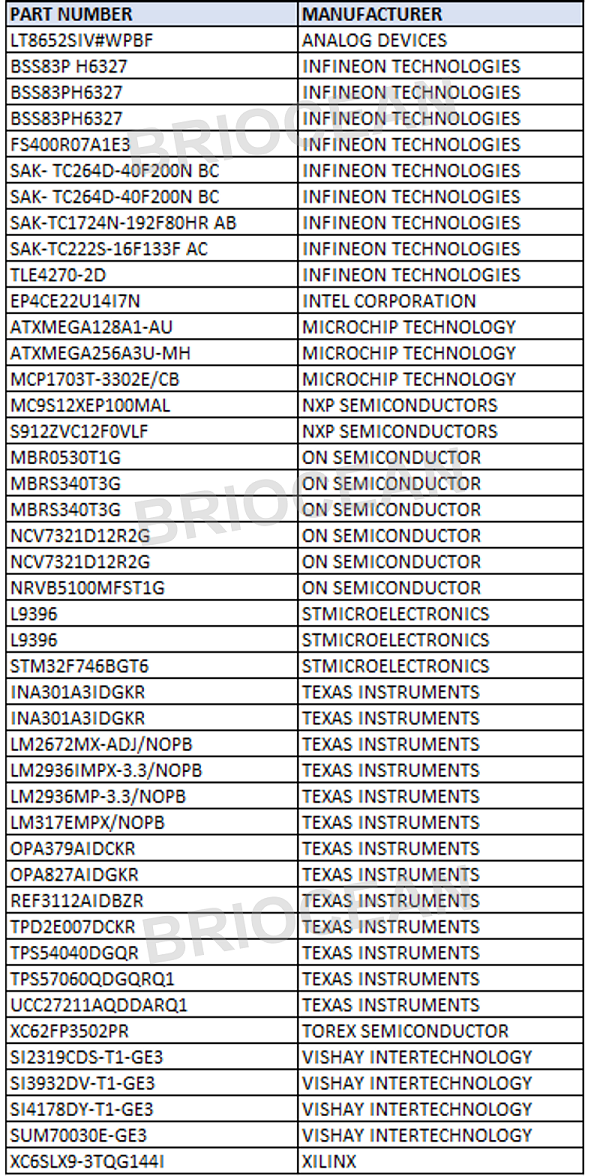

Tier 2 Interception Part List
If are interested to download February’s report, please reach out to email@example.com
High-risk or Counterfeit Part List by ESM China
High-risk or counterfeit part list released by ESM China
